ASUS P6T7 WS Supercomputer Socket 1366

No hay Etiquetas
Entrada
Midle End Level

Chapita1337

entradas: 354

14:22 31/07/2009

1

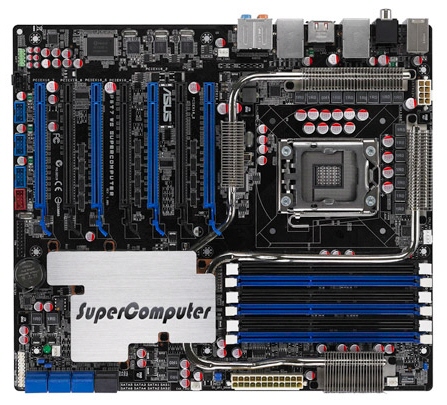

Imagenes!


Especificaciones

Model
Brand ASUS
Model P6T7 WS Supercomputer
Supported CPU
CPU Socket Type LGA 1366
CPU Type Core i7 / Core i7 Extreme Edition / Xeon 3500 Series / Xeon E5502/E5504/E5506
FSB QPI 6.4GT/S
Chipsets
North Bridge Intel X58
South Bridge Intel ICH10R
Memory
Number of Memory Slots 6×240pin
Memory Standard DDR3 2000(O.C.)/1866(O.C.)/1800(O.C.)/1600(O.C.)/1333 /1066
Maximum Memory Supported 24GB
Channel Supported Triple Channel
Expansion Slots
PCI Express 2.0 x16 3 x PCIe 2.0 x16 (@ x16 or x8)
3 x PCIe 2.0 x16 (@ x8)
1 x PCIe 2.0 x16 (@ x16)
Storage Devices
SATA 3Gb/s 6
SATA RAID 0/1/5/10 Matrix RAID
Onboard Audio
Audio Chipset ADI AD2000B
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Second LAN Chipset Realtek 8111C
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports
PS/2 1
USB 6 x USB 2.0
eSATA 2 x eSATA 3Gb/s
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Onboard USB
Onboard USB 3 x USB connectors support additional 6 USB ports
Onboard 1394
Onboard 1394 1x 1394a
Physical Spec
Form Factor CEB
Dimensions 12.0" x 10.5"
Power Pin 24 Pin
Features
Features NVIDIA nForce 200 X2
CUDA Parallel computing supported
ATI CrossFireX & NVIDIA Geforce SLI Support
Ext Marvell 88SE6320 SAS controller
- 2 x SAS (RAID 0,1)

Quien se banca las 7 placas de video? eh?

Jajaja ojalata, cuando me la compre, dentro de 5 años, les hago un review
